BrandMILLER ELECTRIC

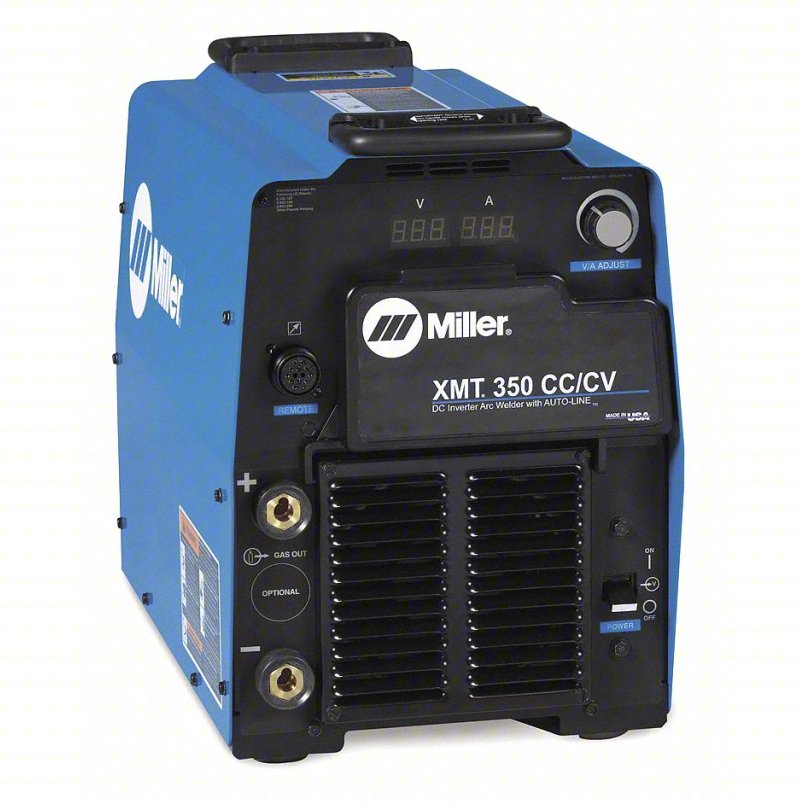

Welder SeriesXMT 350 CC/CV
Manufacturer Part Number907161
Process
- MIG Welding (GMAW)
- Flux-Cored Welding (FCAW)
- Stick Welding (SMAW)
- TIG Welding (GTAW)
- Air Carbon Arc Cutting and Gouging (CAC-A)
PhaseSingle-/Three-Phase
Input Frequency50/60 Hz
PolarityDC
Input Voltage
- 208V AC
- 220/230/240V AC
- 380/400V AC
- 440/460/480V AC
- 575V AC
Welding Power Source TypeCC/CV
Minimum Amperage (Stick)5 A
Maximum Amperage (Stick)425 A
Rated Output @ Duty Cycle (Stick)
- 300 A @ 32 V, 60%
- 350 A @ 34 V, 60%
Minimum Amperage (MIG)5 A
Maximum Amperage (MIG)425 A
Rated Output @ Duty Cycle (MIG)
- 300 A @ 32 VDC, 60%
- 350 A @ 34 VDC, 60%
Minimum Amperage (TIG)5 A
Maximum Amperage (TIG)425 A
Rated Output @ Duty Cycle (TIG)
- 300 A @ 32 V, 60% (1-Phase)
- 350 A @ 34 V, 60% (3-Phase)
Maximum Input Current40.4 A @ 208V AC (Three-Phase); 60.8 A @ 208V AC (Single-Phase)
Open Circuit Voltage75 V DC
For Material TypeAluminum; Metal; Stainless Steel; Steel
For Wire Type
- Aluminum
- Flux-Cored
- Solid
Minimum Wire Diameter0.35 (Aluminum); 0.35 (Nickel); 0.35 (Steel)
Maximum Wire Diameter
- 0.40 in (Aluminum)
- 0.45 in (Nickel)
- 0.45 in (Steel)
Remote Connection Type14-Pin (Miller)
TIG Arc Start FeatureLift Arc Start
Plug TypeBare Leads
IncludesPower source only
Overall Depth26 in
Overall Height16 in
Overall Width20 in
Weight80 lb
UNSPSC23171508
Country of OriginUSA (subject to change)
