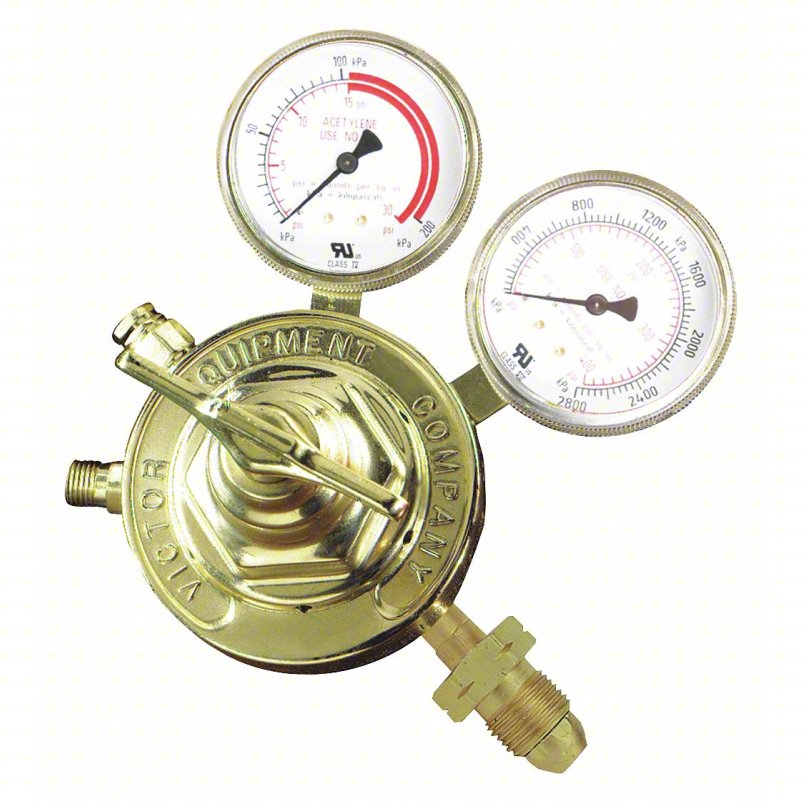

Product Details
BrandVICTOR
Manufacturer Part Number0781-0584
Regulator SeriesSR 450
For Gas TypeAcetylene
Mounting TypeCylinder
Number of StagesSingle Stage
CGA NumberCGA 510
Inlet ConnectionCGA 510
Inlet Connection TypeNGO
Inlet Connection GenderFemale
Inlet Connection Size0.825"-14
Inlet Thread DirectionLeft Hand
Inlet Pressure (Maximum)3,000 psig
Outlet Connection9/16"-18 M LH
Outlet Connection TypeUNF
Outlet Connection GenderMale
Outlet Connection Size9/16"-18
Outlet Thread DirectionLeft Hand
Outlet Pressure (Maximum)15 psig
Outlet Pressure (Minimum)2 psig
Body MaterialBrass
Diaphragm MaterialStainless Steel
Control TypeT-Handle
Flow Coefficient0.27
Maximum Gauge Outlet Pressure400 psig
Body Diameter3.5 in
Gauge Diameter2-1/2 in
Overall Depth5.13 in
Overall Height7 in
Overall Width7.25 in
ApplicationCutting; Heating; Welding
FeaturesTried and True Brass Design Delivers Excellent Gas Control Characteristics That Meets the Demands of Precise Cutting, Welding and Heating Applications
StandardsETL Listed; UL252
UNSPSC40142201
Country of OriginMexico (subject to change)
